Catalog Number
DSDFSPK808
UPC
785928586569
List Price
$94.60
Description

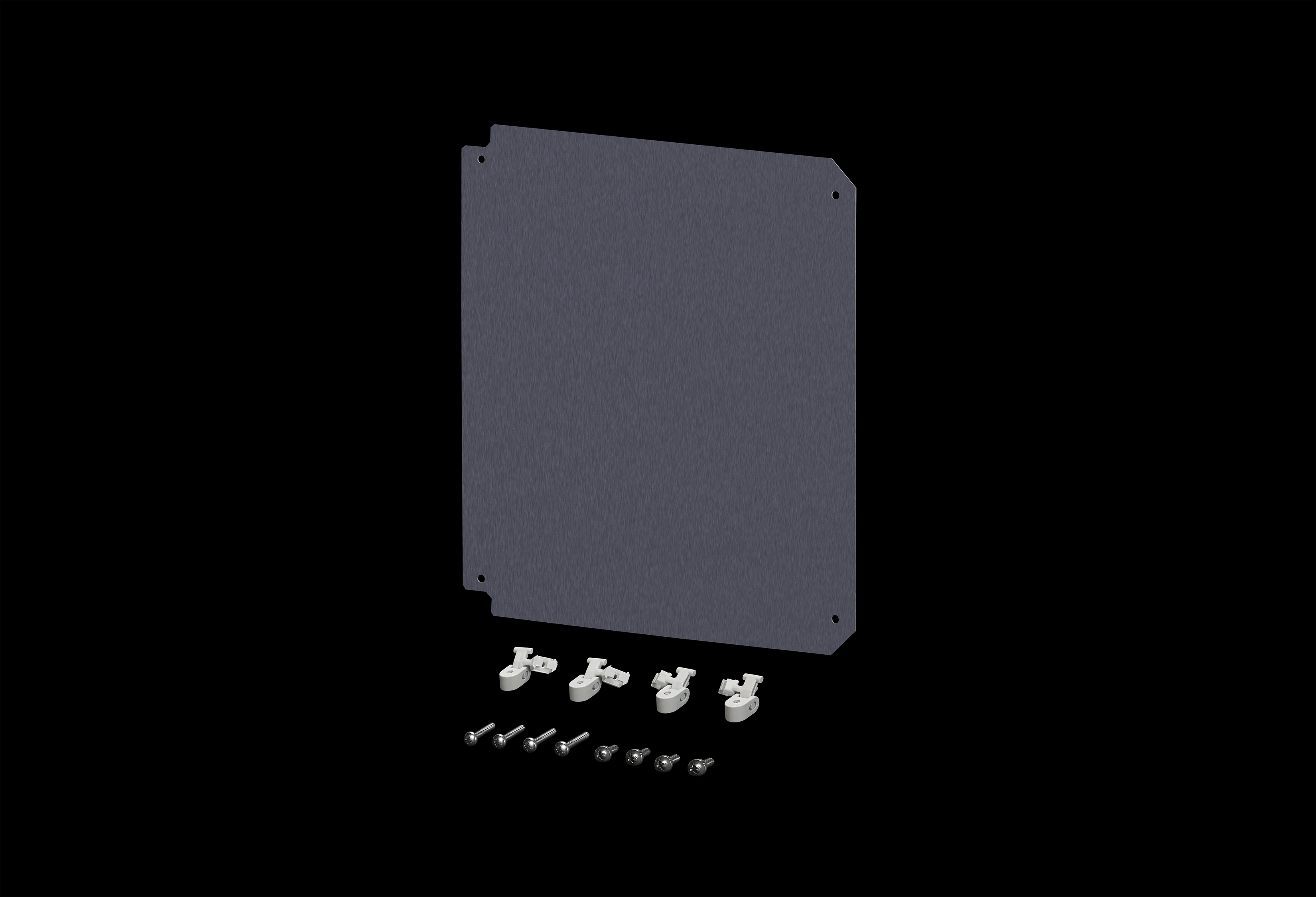

8H x 8W Diamond Shield Series Aluminum Dead Front Swing Panel and Accessory Kit. Includes Panel and Mounting Hardware
Application
Designed for OEMs looking to save time and labor while installing a swing panel or a dead front panel in the most functional, intelligently designed fiberglass enclosure on the market.
Features
Aluminum Material Construction
Patent Pending
Innovative Design allows for installation in new and retrofit Diamond Shield applications
Corrosion Resistant Material Construction
Simple and Easy Installation with common tools
With our expanded size range, the new Swing Panel Mount Kits are available in sizes 6" x 6" to 20" x 16". New 6" x 6" compact size available.
Standard Swing Panel Mount components function with all sizes of Diamond Shield enclosures.
General Information
Color
Natural
Material
Aluminum
Back Panel Screw Size
Back Panel Recommended Torque
Back Panel Screw Material
Cover Screw Size
Cover Screw Recommended Torque
Cover Screw Material
Mounting Foot Screw Size
Mounting Foot Screw Recommended Torque
Installation Mounting Torque
Metal Inserts
Hinge Material
Polycarbonate
Latch Material
Gasket Material
Country of Origin
USA
Dimensions
Height (in)
8.6
Width (in)
8.5
Height (mm)
217.4
Width (mm)
216.2
Technical Information
Product Category
Panels
Product Family
Swing Panel
Patent Url
